SPECIFICATIONS

Assembly Required: no

Brand Name: BIGTREETECH

Brightness: 500 Cd/m²

Choice: yes

Compatible: CM4,Voron 2.4,Ender 3,B1 SE PLUS

Control Method: Others

Core Board: BIGTREETECH CB1 v2.2, 1GB, with a 32 GB memory card

Dimensions: 185.7 x 124.78 x 39.5 mm

Display: 7 inches, 1024 x 600, 60Hz refresh rate

Display Port: HDMI

Display Viewing Area: 154.2 x 85.92 mm

High-concerned chemical: none

Input: DC 12V, 2A

Interface: USB 2.0 x 3, Ethernet, CAN, SPI, SOC-Card, 3.5mm Jack

Item Shape: Flat

Item Type: Display Screen

Model Number: Pad 7

Origin: Mainland China

PC Connection: Type-C (CM4 eMMC writing OS)

Rated Power: 7.3W

Touch Port: USB-HID

Viewing Angle: 178°

semi_Choice: yes

NOTES

There are two options for this screen,one is Pad 7 with CB1;the other is Pad 7 (without CB1)Users can purchase CB1 or CM4 for installation.

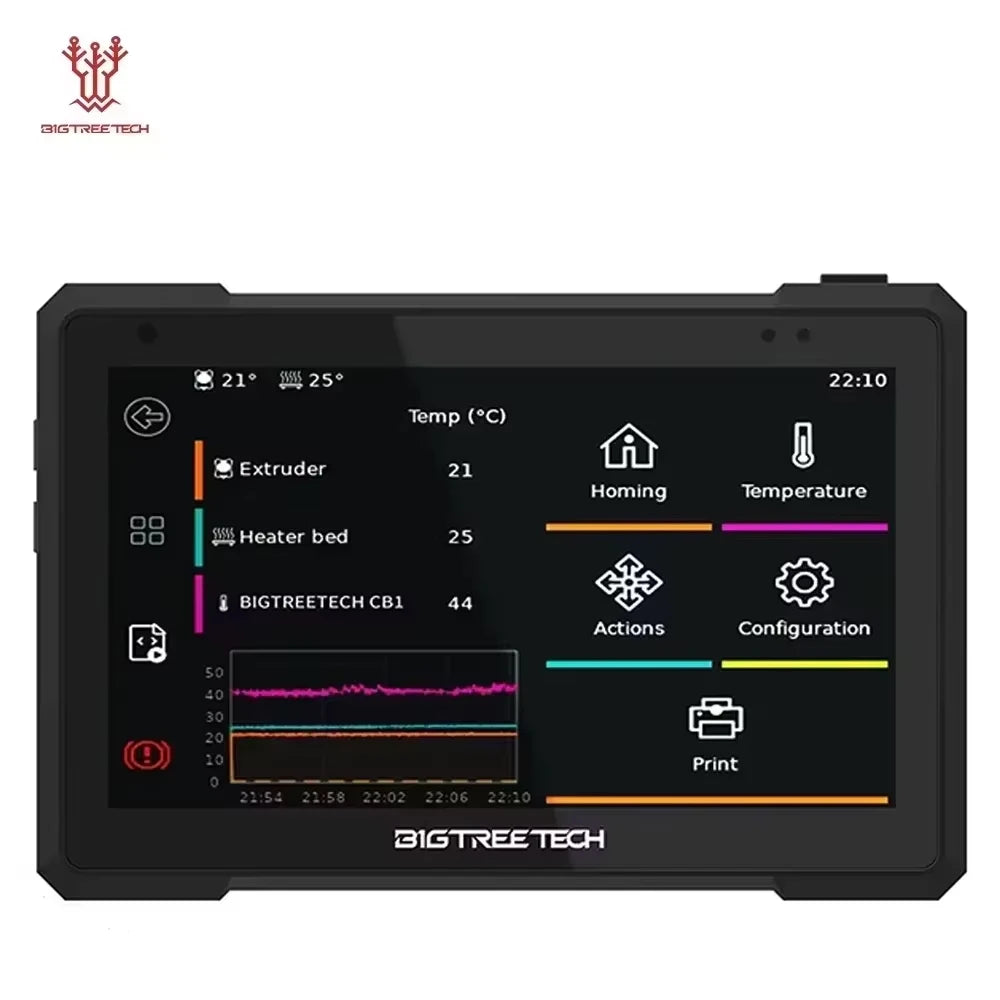

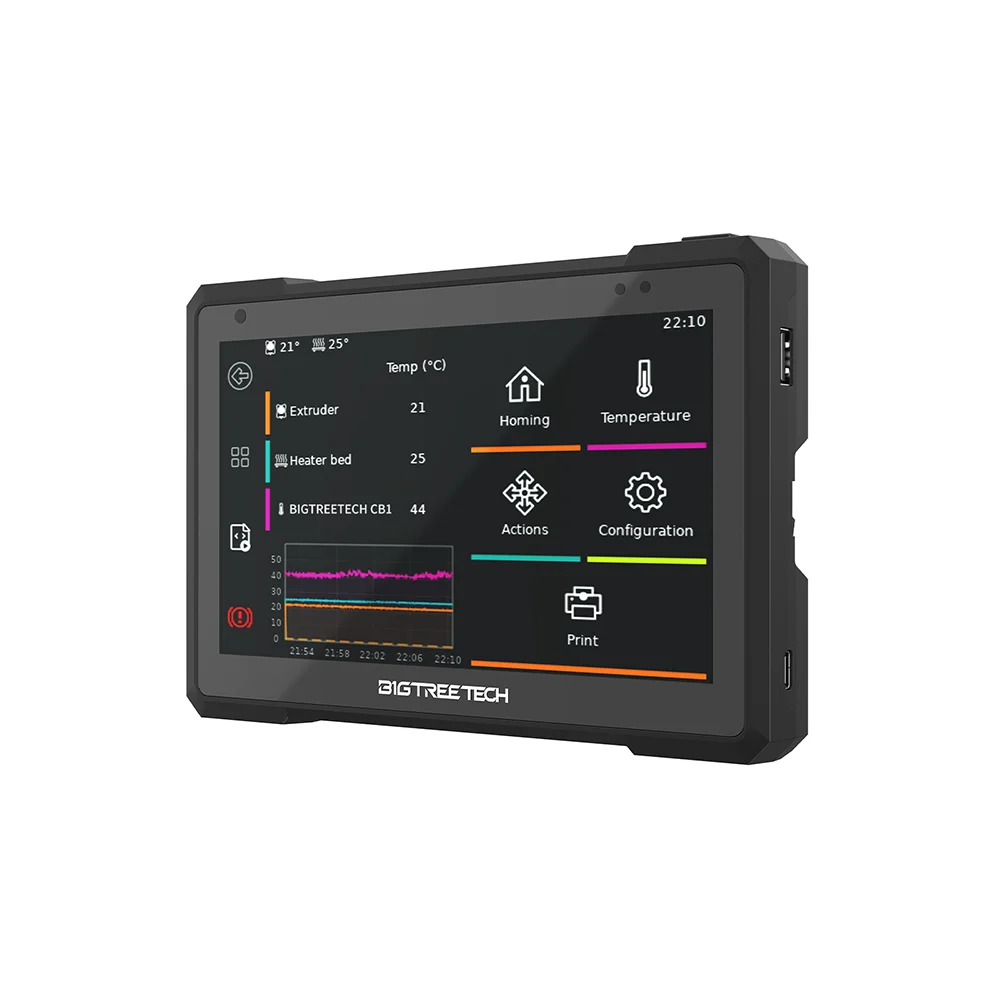

The BIGTREETECH Pad 7, a product of Shenzhen Big Tree Technology Co., Ltd., is a tablet equipped with pre-installed Klipper and KlipperScreen. The BTB headers have been engineered to provide users with the flexibility to select from various solutions, including CM4, CB1, and more.

Specifications

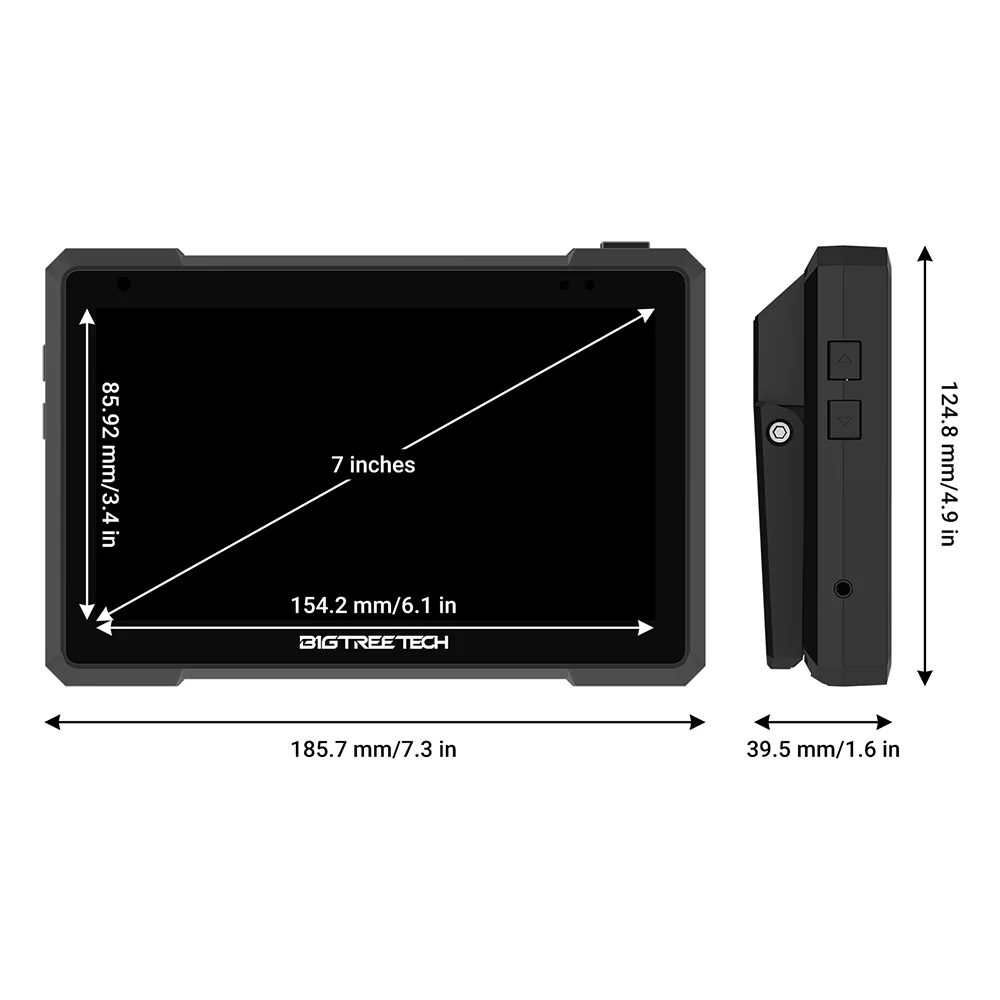

1. Dimensions: 185.7 x 124.78 x 39.5 mm

2. Display Viewing Area: 154.2 x 85.92 mm

3. Display: 7 inches, 1024 x 600, 60Hz refresh rate

4. Viewing Angle: 178°

5. Brightness: 500 Cd/m²

6. Input: DC 12V, 2A

7. Rated Power: 7.3W

8. Display Port: HDMI

9. Touch Port: USB-HID

10. PC Connection: Type-C (CM4 eMMC writing OS)

11. Interface: USB 2.0 x 3, Ethernet, CAN, SPI, SOC-Card, 3.5mm Jack

12. Core Board: BIGTREETECH CB1 v2.2, 1GB, with a 32 GB memory card

13. Compatible: CM4Voron 2.4，Ender 3，B1 SE PLUS

Feature Highlights

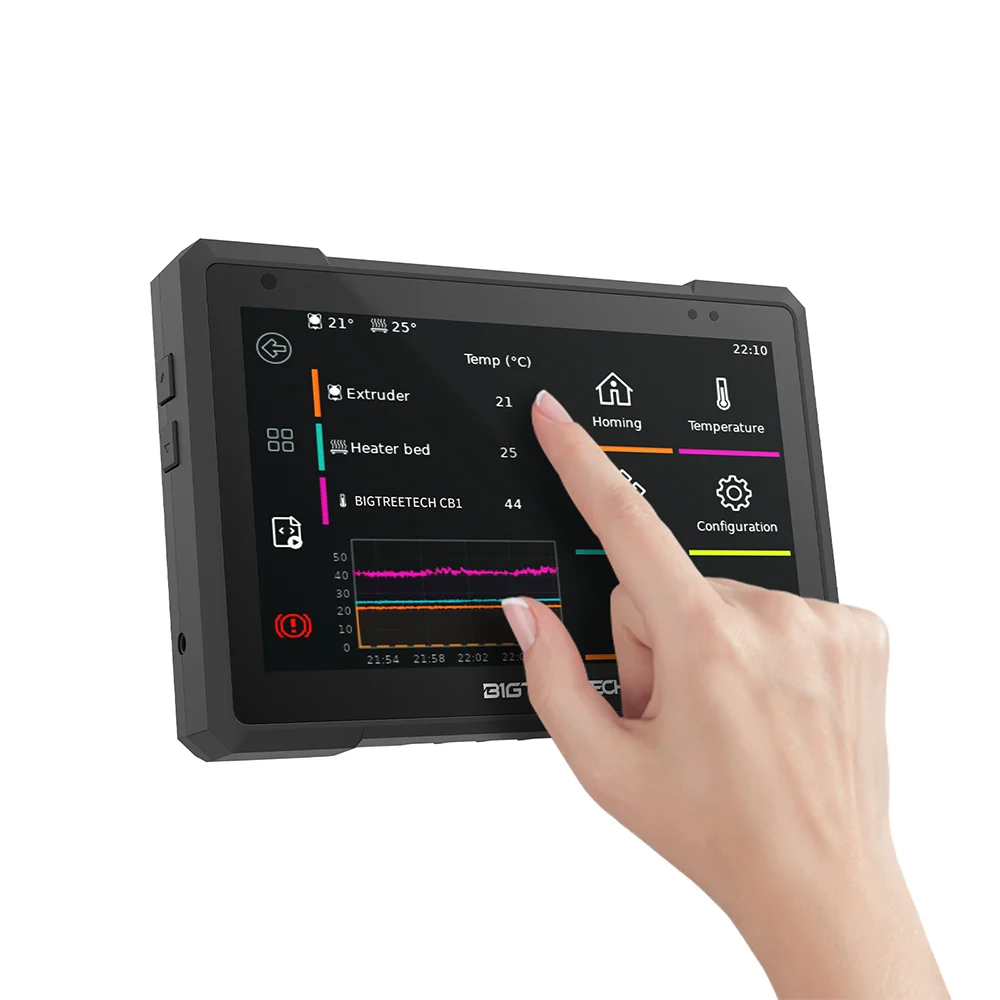

• The 7-inch IPS touch screen offers a wider field of view, high level of detail, and a comfortable user experience.

• Features a built-in speaker, which allows you to adjust the volume with the volume buttons.

• Having a 3.5mm headphone jack, which enables you to connect headphones or external speakers.

• The touch experience is enhanced with vibration feedback.

• The built-in light sensor adjusts the backlight brightness automatically based on the available light.

• Incorporates the GT911 high-performance touch chip, which supports 5-point touch.

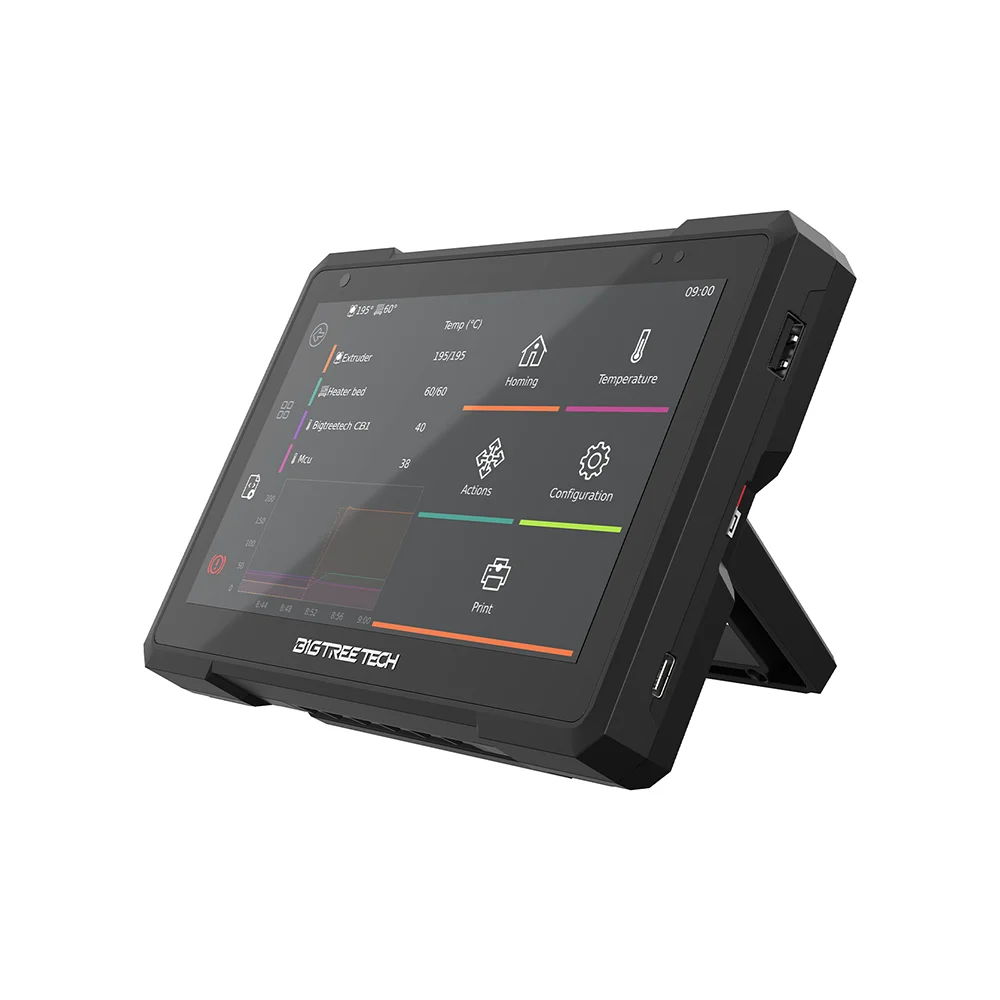

• The bracket attaches securely to the back of the Pad 7 during storage and folding, thanks to the built-in magnets.

Advantage

• Klipper Pre-installed

• 7-inch IPS Touch Screen

• 1024x600 178° Viewing Angle

• CB1/CM4 Compatibility

• Rich Expansion Interface

• Open Source Support
